2008 Suburban Fuse Box Diagram: A Comprehensive Guide
The 2008 Suburban has four fuse boxes; two underhood fuse boxes, an end panel instrument panel fuse box, also called the Body Control Module (BCM), and a center instrument panel fuse box (not shown here). The engine compartment fuse box is located on the driver’s side of the engine compartment and is covered with a lid to protect the fuses against water splash. For this reason, always reinstall the cover after working on the fuse box. The instrument panel fuse box is under the dash on the driver’s side edge of the instrument panel. This post shows the 2008 Suburban fuse box diagram for three fuse boxes, and the circuits covered for each fuse
To learn more about automotive fuses, see this article
To learn how to check a fuse visually or without removing it, see this article
Find the most commonly replaced fuses here
The fuse box diagram and table below show all 62 fuses and all the relays. But most DIYers are looking for fuses and relays for the lights, power ports, and the blower motor. I’ve listed the most commonly checked/replaced fuses here to save time. I’ve also listed the most commonly replaced bulbs. A blown fuse or bulb are the two most common reasons for lighting issues.
Underhood Fuse Box = UFB, Instrument panel fuse box = IPFB
• Backup Light: Fuse #15 10A UFB
• Blower Motor: Fuse #70 40A UFB
• HeadlightPassenger Side Low Beam: Fuse #16 20A UFB
• Headlight Driver’s Side Low Beam: Fuse #11 20A UFB
• Headlight Passenger Side High Beam: Fuse #30 15A UFB
• Headlight Driver’s Side High Beam: Fuse #32 15A UFB
• Horn: Fuse #29 15A UFB
• Driver’s Side Park/Turn/Signal lamps: Fuse #26 15A UFB
• Passenger Side Park/Turn/Signal lamps: Fuse #27 15A UFB
• Power Ports: Cigarette Lighter Fuse #53 20A UFB
A note about fuses, battery power and keep alive memory
If you disconnect the battery or remove the PCM fuses from the fuse box, the PCM will lose its adaptive memory and baseline throttle body position. You can avoid this by providing backup power using a jumper pack and an inexpensive OBDII cable. See this article for more information on providing backup power to prevent the loss of adaptive memory.
2008 Suburban Fuse Box Diagram for Underhood Fuse Box
The underhood fuse block is located on the driver’s side of the engine compartment and to the rear of the battery. Remove the cover to access the fuses. However to prevent water from entering the fuse box, always keep the cover in place when you’re operating the vehicle.
How to find your fuse and the devices served by that fuse
There are 73 fuses in the Underhood Fuse Box. There are several ways to find the fuse you want in the chart below.
1) Enter the number in the search box. That’s the fastest way
2) If you’d like to scroll all the fuses, change the Number of entries to show on the page in “Show Entries” box. Click NEXT or PREVIOUS at the bottom right of the table
| Fuse Number | Amperage | Circuits Protected |
|---|---|---|
| F1 | 10 | Trailer Wiring, Auxiliary Body Control Module (XBCM) (EX |
| F2 | 30 | Automatic Level Control (ALC) Compressor (G69), Electronic Suspension Control (ESC) Module |
| F3 | 10 | Trailer Wiring, Auxiliary Body Control Module |
| F4 | 15 | Evaporative Emissions (EVAP) Canister Purge Solenoid Valve, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Valve Lifter Oil Manifold (VLOM) Assembly (AFM) |
| F5 | 15 | Engine Control Module (ECM) |
| F6 | 15 | Not Used |
| F7 | 15 | Windshield Washer Fluid Pump |
| F8 | 10 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 |
| F9 | 25 | Electronic Brake Control Module (EBCM) |
| F10 | 10 | Trailer Wiring |
| F11 | 20 | Headlamp – Left (Z88), Headlamp – Low Beam – Left (X88), Headlamp Ballast – Left (Z75) |
| F12 | 10 | Engine Control Module (ECM) |
| F13 | 20 | Fuel Injector 2, Fuel Injector 4, Fuel Injector 6, Fuel Injector 8, Ignition Coil 2, Ignition Coil 4, Ignition Coil 6, Ignition Coil 8 |
| F14 | 15 | Evaporative Emissions (EVAP) Canister Vent Solenoid Valve, Transmission Control Module (TCM) |
| F15 | 10 | Backup Lamp – Left, Backup Lamp – Right |
| F16 | 20 | Headlamp – Right (Z88), Headlamp – Low Beam – Right (X88), Headlamp Ballast – Right (Z75) |
| F17 | 10 | A/C Compressor Clutch |
| F18 | 10 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| F19 | 15 | Transmission Control Module (TCM), 1–2 Shift Solenoid (1–2 SS) Valve, 2–3 Shift Solenoid (2–3 SS) Valve, 3–2 Shift Solenoid (3–2 SS) Valve (M30 or M70), Torque Converter Clutch (TCC) Solenoid Valve (M30 or M70), Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve |
| F20 | 20 | Fuel Pump and Sender Assembly – Primary |
| F21 | 20 | Fuel Pump Flow Control Module |
| F22 | 20 | Not Used |
| F23 | 15 | Rear Window Washer Fluid Pump |
| F24 | 20 | Fuel Injector 1, Fuel Injector 3, Fuel Injector 5, Fuel Injector 7, Ignition Coil 1, Ignition Coil 3, Ignition Coil 5, Ignition Coil 7 |
| F25 | 15 | Trailer Wiring |
| F26 | 15 | License Lamp – Left, License Lamp – Right, Marker Lamp – Left Front, Park/Turn Signal Lamp – Left Front (X88/Z88), Park Lamp – Left Front (Z75), Tail Lamp Circuit Board – Left (Z75 with E52), Marker Lamp – Left Rear (except Z75 with E52), Tail/Stop and Turn Signal Lamp – Lower Left (except Z75 with E52), Tail/Stop and Turn Signal Lamp – Upper Left (except Z75 with E52) |
| F27 | 15 | Tail Lamp Circuit Board – Right (Z75 with E52), Marker Lamp – Right Front, Park Lamp – Right Front (Z75), Park/Turn Signal Lamp – Right Front (X88 or Z88), Tail/Stop and Turn Signal Lamp – Lower Right (X88, Z88 or Z75 with E52), Tail/Stop and Turn Signal Lamp – Upper Right (X88, Z88 or Z75 with E52), Marker Lamp – Right Rear (X88, Z88 or Z75 with E52) |
| F28 | 15 | Fog Lamp – Left Front (T96), Fog Lamp – Right Front (T96) |
| F29 | 15 | Horn – Left, Horn – Right |
| F30 | 10 | Headlamp – Right (Z88), Headlamp – Right High Beam (X88 or Z75) |
| F31 | 15 | Daytime Running Lamp (DRL) – Left (Z75 or X88), Daytime Running Lamp (DRL) – Right (Z75 or X88), DRL 2 Fuse (Z88) |
| F32 | 10 | Headlamp – Left (Z88), Headlamp – High Beam – Right (X88 or Z75) |
| F33 | 15 | LO HDLP – LT Fuse (Z88), LO HDLP – RT Fuse (Z88) |
| F34 | 30 | Sunroof Control Module (CF5), Roof Beacon Relay (5G4) |
| F35 | 2 | Ignition Switch, Theft Deterrent Module (TDM) |
| F36 | 25 | Wiper 1 PCB Relay |
| F37 | 30 | Not Used |
| F38 | 15 | PARK ENABLE PCB Relay, ELECTRONIC ADJUSTABLE PEDALS PCB Relay, Folding Seat Switch - Front (ARS), Folding Seat Switch - Left Rear (ARS), Folding Seat Switch - Right Rear (ARS), Multifunction Switch - I/P, Police Provision Wiring (6J1) |
| F39 | 10 | HVAC Control Module |
| F40 | 10 | Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Passenger Air Bag ON/OFF indicator |
| F41 | 30 | Audio Amplifier (UQA or UQS) |
| F42 | 15 | Clock (Z75), Digital Radio Receiver (U2K), Radio, Rear Seat Audio (RSA) Controller (UK6) |
| F43 | 10 | Auxiliary Body Control Module (XBCM) (EXP), Rearview Camera (UVC or SPO Accessory - Rear Vision Camera), Seat Climate Control Module (KB6), Stop Lamp Switch, Transfer Case Shift Control Module (NQH), Serial Data Gateway (SDG) Module |
| F44 | 15 | Liftgate Latch Assembly (E52) |
| F45 | 15 | Inflatable Restraint Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor (ASF) Body Control Module (BCM), Instrument Panel Cluster |
| F46 | 10 | Body Control Module (BCM), Instrument Panel Cluster (IPC) |
| F47 | 15 | Auxiliary Body Control Module (XBCM) (EXP), Spot Lamp - Left |
| F48 | 10 | Instrument Panel Cluster (IPC), Inside Rearview Mirror (ISRVM), Mode Actuator – Auxiliary (C69), Air Temperature Actuator – Auxiliary (C69), Inflatable Restraint Steering Wheel Module Coil (KA9), Heated Steering Wheel Control Module (KA9) |
| F49 | 15 | Not Used |
| F50 | 30 | Rear Window Defogger Grid |
| F51 | 15 | Not Used |
| F52 | 15 | Auxiliary Body Control Module (XBCM) (EXP), Spot Lamp – Right (7X7), Vehicle Inclination Sensor (SPO Alarm), Security Indicator Lamp (SPO Alarm), Vehicle Shock Sensor (SPO Alarm) |
| F53 | 20 | Accessory Power Outlet – I/P 1, Data Link Connector (DLC) |
| F54 | 10 | Automatic Level Control (ALC) Relay (G69), Digital Video Disc (DVD) Control Module (SPO Accessory – Headrest DVD) |
| F55 | 10 | Air Temperature Actuator – Left, Air Temperature Actuator – Right, Mode Actuator, Recirculation Actuator |
| F56 | 15 | Engine Control Module (ECM), Fuel Pump Relay – Secondary (LY6), Fuel Pump Flow Control Module (except LY6), Electronic Brake Control Module (EBCM) (HP2) |
| F57 | 40 | FAN LO PCB Relay |
| F58 | 40 | Automatic Level Control (ALC) Relay (G69) |
| F59 | 60 | Electronic Brake Control Module (EBCM) |
| F60 | 40 | FAN HI PCB Relay |
| F61 | 40 | Electronic Brake Control Module (EBCM) |
| F62 | 40 | Starter Motor |
| F63 | 30 | Blunt Cut Wire |
| F64 | 60 | AUX PWR 2 Fuse, REAR WPR Fuse, PDM Fuse, AUX PWR Fuse |
| F65 | 30 | Assist Step Control Module (BRS) |
| F66 | 60 | Windshield Washer Solvent Heater (XA7) |
| F67 | 30 | Transfer Case Encoder Motor (NQH), Transfer Case Shift Control Module (NQH) |
| F68 | 40 | Trailer Wiring |
| F69 | 60 | DRIVER SEAT 2 Circuit Breaker, PASS SEAT 1 Circuit Breaker, RT DOORS Circuit Breaker |
| F70 | 40 | Blower Motor Control Module |
| F71 | 30 | Liftgate Module (LGM) (E61) |
| F72 | 60 | BCM Fuse, COOLED SEATS Fuse, DDM Fuse, DIM Fuse, DSM Fuse, REAR HVAC Fuse, RT STOP TRN Fuse, WSW PUMP Fuse |
The relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
– BCK/UP LAMP PCB Relay – VEH BCK/UP Fuse, TRLR BCK/UP Fuse
– CHMSL PCB Relay – CHMSL Fuse
– DRL PCB Relay – DRL Fuse
– FAN CNTRL PCB Relay – Cooling Fan – Right
– FRT WASH PCB Relay – FRT WASH Fuse
– HI BEAM PCB Relay – HI HEADLAMP – LT Fuse, HI HEADLAMP – RT Fuse
– HORN PCB Relay – HORN Fuse
– L/GATE PCB Relay – L/GATE RELSE Fuse
– REAR WASH PCB Relay – REAR WASH Fuse
– RUN PCB Relay – FWD Fuse, HTD STR/WHL Fuse
– TRLR STOP LT PCB Relay – TRLR STOP LT Fuse
– TRLR STOP RT PCB Relay – TRLR STOP RT Fuse
– WIPER 1 PCB Relay – Wiper 2 PCB Relay
– WIPER 2 PCB Relay – Windshield Wiper Motor
2008 Suburban Fuse Box Diagram for Auxiliary Fuse Box
2008 Avalanche Auxiliary Fuse Box Diagram
The Auxiliary fuse box is located on left side of engine compartment
| Fuse Number | Amperage | Circuits Protected |
|---|---|---|
| F1 | 25 | Accessory Power Inverter Module |
| F2 | 15 | Generator Battery Vent Fan Relay |
| F3 | 15 | A/C Compressor |
| F4 | 10 | Heater Coolant Pump |
| F5 | — | Not Used |
| F6 | 15 | Generator Control Module Coolant Pump - Left, Generator Control Module Coolant Pump - Right |
| F7 | 15 | Electronic Power Steering Motor Control Module |
| F8 | 15 | Drive Motor Generator Power Inverter Module |
| F9 | 15 | Drive Motor Generator Power Inverter Module |
| F10 | 15 | Drive Motor Generator Battery Control Module, Serial Data Gateway (SDG) Module |
| FAN 1 | Relay | Fuse 40A FAN LO Relay, FAN MID 1 Relay |
| FAN 2 | Relay | Fuse 40A FAN HI Relay, FAN MID 2 Relay |
| TRANS PUMP | Relay | Fuse 60A Auxiliary Transmission Pump Control Module |
| CAB HTR PUMP | Relay | CAB HTR PUMP Fuse, Heater Coolant Pump |
| COOL PUMP | Relay | COOL PUMP Fuse, Generator Control Module Coolant Pump - Left, Generator Control Module Coolant Pump - Right |
| FAN LO | Relay | Cooling Fan - Left |
| FAN MID 1 | Relay | Engine Cooling Fan Resistor - Left |
| FAN MID 2 | Relay | Cooling Fan - Right |
| FAN HI Relay | Relay | Cooling Fan - Right |
| FAN CNTRL | Relay | Cooling Fan - Left |

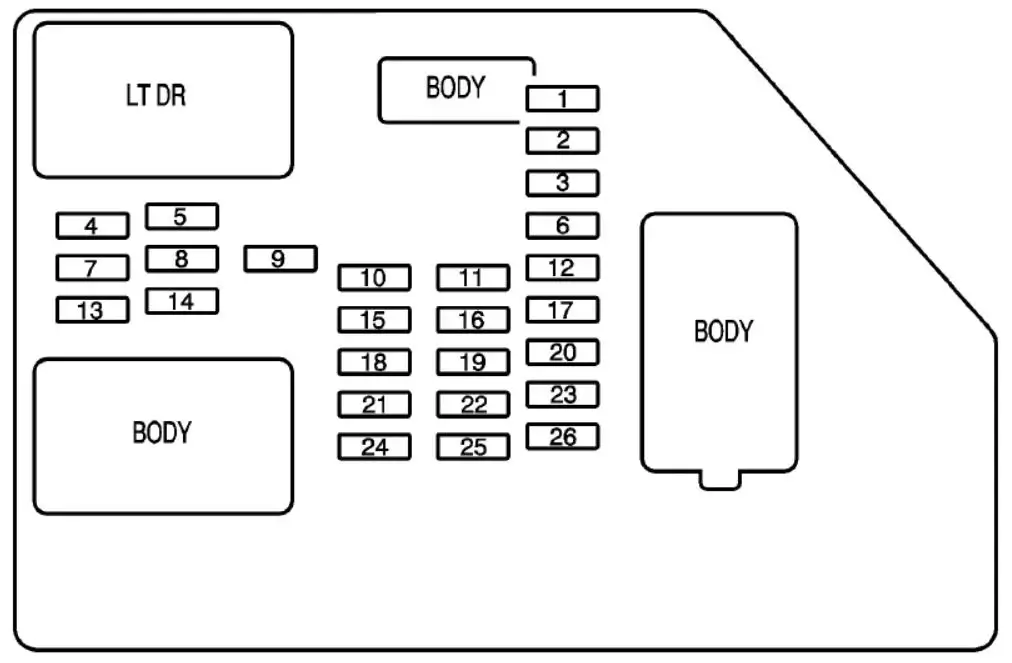

2008 Suburban Fuse Box Diagram for Instrument Panel Fuse Box
The Instrument Panel fuse block is located at the left side of the dash behind the access panel.
| Fuse Number | Amperage | Circuits Protected |
|---|---|---|
| F1 REAR SEAT Fuse | 20 | Folding Seat Motor - Left Rear (ARS), Folding Seat Motor - Right Rear (ARS), Heated Seat Module - Rear 6) |
| F2 AUX PWR2 | 20 | Auxiliary Power Outlet - Rear (E52 or TB7), Auxiliary Power Outlet - Center Seat (AZ3 or A95) |
| F3 SWC BKLT | 2 | Steering Wheel Control Switch - Left, Steering Wheel Control Switch - Right |
| F4 DDM Fuse | 15 | Driver Door Module (DDM) |
| F5 CTSY Fuse | 15 | Body Control Module (BCM) |
| F6 LT STOP TRN | 15 | Body Control Module (BCM) |
| F7 DIM Fuse | 10 | Body Control Module (BCM) |
| F8 RT STOP TRN | 15 | Body Control Module (BCM) |
| F9 PDM Fuse | 15 | Garage Door Opener (GDO) (UG1), Inside Rearview Mirror (ISRVM), Passenger Door Module (PDM), Roof Beacon Switch ) |
| F10 UNLCK2 | 15 | Endgate Lock Actuator |
| F11 LCK2 | 15 | Endgate Lock Actuator |
| F12 STOP LAMPS | 15 | Body Control Module (BCM) |
| F13 REAR HVAC | 30 | Blower Motor Control Module - Auxiliary |
| F14 PWR MIR | 2 | Not Used |
| F15 BCM Fuse | 10 | Body Control Module (BCM) |
| F16 AUX PWR | 20 | Accessory Power Outlet - Center Console Compartment (D07), Accessory Power Outlet - Center Console (D07), Accessory Power Outlet - I/P 2 (X88 or Z88) |
| F17 IS LPS | 10 | Body Control Module (BCM) |
| F18 UNLCK1 | 15 | Door Latch Assembly - Left Rear, Door Latch Assembly - Right Rear |
| F19 RSE Fuse | 5 | Video Display - Front (U42), Video Display - Rear (U42 with DNU) 20 OBS DET Fuse 10A Liftgate Module (LGM) (E61), Rear Object Sensor Control Module (UD7) |
| F20 OBS DET | 10 | Liftgate Module (LGM) (E61), Rear Object Sensor Control Module (UD7) |
| F21 LCK 1 | 15 | Door Latch Assembly - Left Rear, Door Latch Assembly - Right Rear |
| F22 INFO | 10 | Vehicle Communication Interface Module (VCIM) |
| F23 REAR WPR | 25 | Rear Window Wiper Motor |
| F24 COOLED SEATS | 30 | Climate Control Seat Module |
| F25 DSM | 10 | Memory Seat Module (AN3), Remote Control Door Lock Receiver (RCDLR) |
| F26 DRV UNLCK | 15 | Not Used |
