2005 Corolla Fuse Box Diagram: Understanding the Fuse Boxes

2005 Corolla Fuse Box Diagram: Find the correct fuse for the circuit

This 2005 Corolla fuse box diagram shows the fuse layouts for two fuse boxes. The underhood fuse box is located near the driver’s side fender in the engine compartment. The passenger fuse box is located behind a panel on the lower side of the dash to the left of the steering wheel. To access the passenger side fuse box, use the finder pull in the cover to remove the cover

Most commonly replaced fuses

Passenger Compartment Fuse Box
15. HEAD LH LWR 10 A: Left−hand headlight (low beam)
16. HEAD RH LWR 10 A: Right−hand headlight (low beam)
18. TAIL 15 A: Tail lights, license plate lights, instrument panel lights, instrument cluster lights
21. WIPER 25 A: Windshield wipers
23. STOP 15 A: Stop lights, high mounted stoplight, anti−lock brake system, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system, cruise control system
25. AM1 25 A: “CIG” fuse
30. P/POINT 15 A: Power outlet (in the rear console box)

Underhood Fuse Box

1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand headlight (high beam)
3. HEAD RH UPR 10 A: Right−hand headlight (high beam), high beam indicator light
8. AMP 30 A: Car audio system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers, turn signal lights
15. HEAD LH LWR 10 A: Left−hand headlight (low beam)
16. HEAD RH LWR 10 A: Right−hand headlight (low beam)

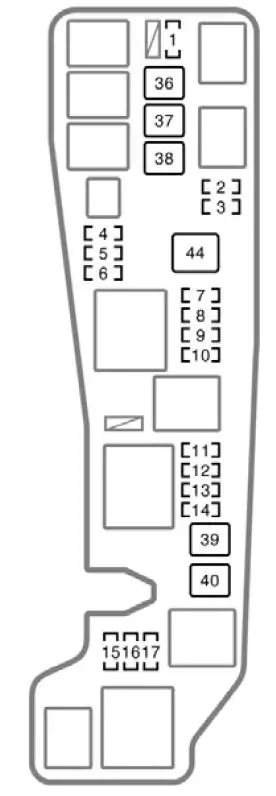

2005 Corolla Fuse Box Diagram For The Under Hood Panel

This fuse box is located under the hood on the driver’s side near the battery. It contains fuses related to the car’s major systems, such as the engine, cooling system, headlights, and air conditioning.

2005 Corolla Fuse Box Diagram For The Cabin Fuse Box

Interior Fuse Box: Located on the lower portion of the dash to the left of the steering wheel. This box holds fuses related to the car’s internal features, such as power windows, door locks, and interior lighting.
