Delta Faucet Cartridge Guide: Identify the Correct One Every Time

How to Choose the Right Delta Shower Faucet Cartridge

Quick Summary
Choosing the correct Delta shower faucet cartridge comes down to identifying your valve type, production era, and cartridge design. The most common mistake I see is buying the wrong Delta shower faucet cartridge. By understanding whether your faucet uses a ball valve, pressure-balanced cartridge, or thermostatic system, you can quickly match the correct Delta shower faucet cartridge and avoid repeat trips to the store. In most cases, pulling the old Delta shower faucet cartridge and visually matching it is the fastest and most reliable method.

How to Identify Your Delta Shower Faucet Cartridge by Valve Type

Delta has used several different designs over the years, and many of them look similar at first glance. If you don’t correctly identify your valve before buying a Delta shower faucet cartridge, you’re almost guaranteed to end up making two trips to the store instead of one.

What makes this even more confusing is that Delta’s MultiChoice brass valves can accept different cartridges and even trim components. So you can’t choose the cartridge based solely on the trim appearance. I’ve seen homeowners assume they need a certain Delta shower faucet cartridge based on the handle style, only to find out the valve inside the wall tells a completely different story. That’s why I always approach the job by first identifying the valve, then matching the correct Delta shower faucet cartridge to that valve—not the other way around.

In my experience, the key to getting it right every time is understanding how each Delta shower faucet cartridge type functions. Whether you’re dealing with an older ball-style system, a Monitor pressure-balanced valve, or a newer MultiChoice setup, each design has distinct features that make identification straightforward once you know what to look for. When you take a few extra minutes to correctly identify the Delta shower faucet cartridge, you eliminate guesswork and ensure the repair goes smoothly the first time.

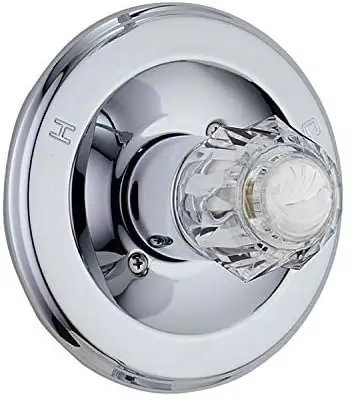

Delta 600 Series Ball Valve (600 Series – pre-1998)

Handle: Acrylic knob — a multi-faceted, clear plastic knob. The valve can be converted to a lever style using a different ball and cam.
Mounting screws: Older Delta valves frequently use two screws positioned at the 5 o’clock and 7 o’clock positions to secure the escutcheon to the wall, which quickly narrows identification down to a few core model families.

The Delta 600 series shower faucet is built around a unique ball valve design instead of a traditional cartridge. It’s a purely mechanical mixing system—no pressure balancing, no thermostatic control, just a direct relationship between handle position and water mix.
The 600 series is reliable, easy to rebuild, and forgiving of wear. That simplicity is exactly why the Delta 600 series shower faucet has lasted so long in the field.

The valve mixes hot and cold water through a rotating ball, with the most common wear parts being the rubber seats and springs, cam and packing, and the stainless ball itself. As the handle is rotated, the ball turns and aligns its ports with the hot- and cold-water inlets to varying degrees, mixing the water to the desired temperature. The ball controls the blend of hot and cold water as the handle sweeps between the temperature range, typically rotating between roughly the 10 o’clock and 2 o’clock positions.

The Delta 600 Series was produced and installed from roughly the 1960s through the mid-1990s.

Delta 600 Series Shower Faucet Most Common Failures

Worn seats and springs (RP4993) — These are the most commonly replaced parts. Two rubber cup-shaped seats sit on two springs and press against the ball ports. These wear flat and harden over time, causing drips.
Cam and packing assembly (RP188 for knob handle, RP61 for lever handle) — The white plastic cam with its rubber gasket seals the top of the ball. It deteriorates and causes handle-area leaks.
Stainless steel ball (RP70 or RP212) — The ball itself can become scored or pitted, especially if sand or debris has passed through the valve. A scored ball will cause persistent leaking even with new seats.
Stuck Chrome Dome Cap/bonnet nut — Removing the chrome dome cap can be a major practical challenge when repairing the 600 series faucet. The cap can corrode to the point where applying too much torque will twist the entire front section of the valve off, since the valve body is held in place by only three short copper supply tubes. The key to repairing this faucet is to accept that you may need to destroy the chrome cap rather than risk damaging the valve body. If the cap doesn’t unscrew, don’t use more force. Simply cut two slots into the dome cap, taking care not to cut into the valve body. Then twist a flat-blade screwdriver into one of the slots to crack the cap open, then remove it and replace it with a new cap.

Delta Monitor 1300 / 1400 Series (1990s–2005) and the Introduction of Multi-Choice

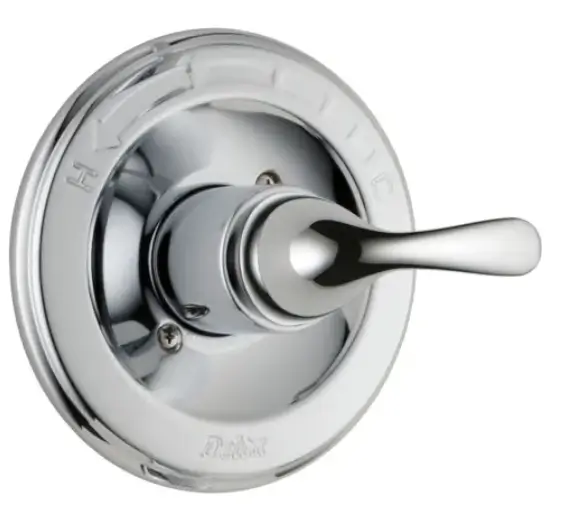

The Delta 1300 and 1400 series shower faucets marked a major upgrade from the older ball-style valves by incorporating a pressure-balancing cartridge system that dramatically improves safety and consistency. What sets the Delta 1300 and 1400 series shower faucets apart from previous generations is their ability to maintain a stable water temperature (within a safe ±3.6°F)—even when someone flushes a toilet or runs another fixture. These valves rely on a self-contained cartridge, making them far easier to service than earlier designs. Most failures stem from cartridge wear, mineral buildup, or improper installation—not the valve body itself, which is extremely durable.

Mechanically, the cartridge senses the incoming hot and cold water pressures simultaneously through the two legs at its base. When pressure on one side drops (say, when a toilet flushes and the cold pressure falls), a piston inside the cartridge automatically restricts the hot side in proportion to maintain balance. The single lever handle controls both temperature (by rotating the handle) and, in some configurations, flow.

Delta 1300 versus Delta 1400

The 1300 and 1400 series use the same R10000 valve body brass valve body but differ in their trim and flow rate, with the 1400 series offering a slightly higher flow rate and more decorative options. Both valves use the RP19804 cartridge.

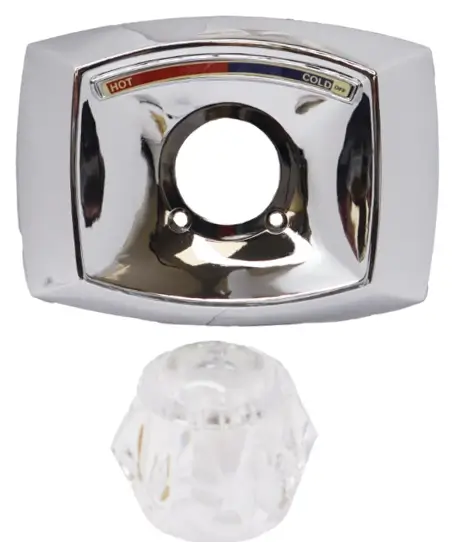

The Delta 1600 Series Shower Valve

The Delta 1600 series shower valve is an older single-handle, pressure-balanced tub-and-shower valve that was widely installed in homes from the late 1980s through the early 2000s. It uses a single lever to control both water temperature and flow, meaning you rotate the handle to adjust temperature and pull/turn it to control water volume.

Internally, the 1600 series uses a cartridge-style valve RP1991 with rubber seats and springs to regulate water flow and seal the system. The valve also includes a pressure-balancing mechanism that helps maintain a consistent mix of hot and cold water when there are pressure changes in the plumbing system—reducing sudden temperature swings when another fixture is used.

Functionally, the valve blends hot and cold water within the cartridge based on the handle position. As you rotate the handle, ports inside the cartridge open and close to vary the mix.

In short, the Delta 1600 series is a reliable, straightforward single-handle shower valve that offers basic pressure-balanced temperature control, but lacks the precision and user convenience of modern dual-control or thermostatic systems.

Delta MultiChoice: What It Means and How It Works

Prior to the MultiChoice feature, once a shower valve was plumbed into the wall, the shower’s function and style were essentially locked in forever. If you wanted to upgrade from a basic on/off handle to a separate volume-and-temperature setup, you had to open the wall and replumb the valve. Delta’s introduction of MultiChoice changed that.

The brass valve body is truly universal. In other words, the same valve body works with any Delta trim kit, whether it contains a 13/14 series, 17 series, or 17T series cartridge. Previously, you needed to make sure your particular Delta valve would fit your particular trim kit. It was very difficult to identify exactly which valve you had and which trim you needed. In short, the valve body goes in the wall once and stays there. Every functional and cosmetic decision about the shower faucet can be made — or changed — later by simply swapping the trim and cartridge at the front of the valve without touching the plumbing.

The Delta 1700 Series Shower Valve

The Delta 1700 series shower valve (Monitor 17 Series)

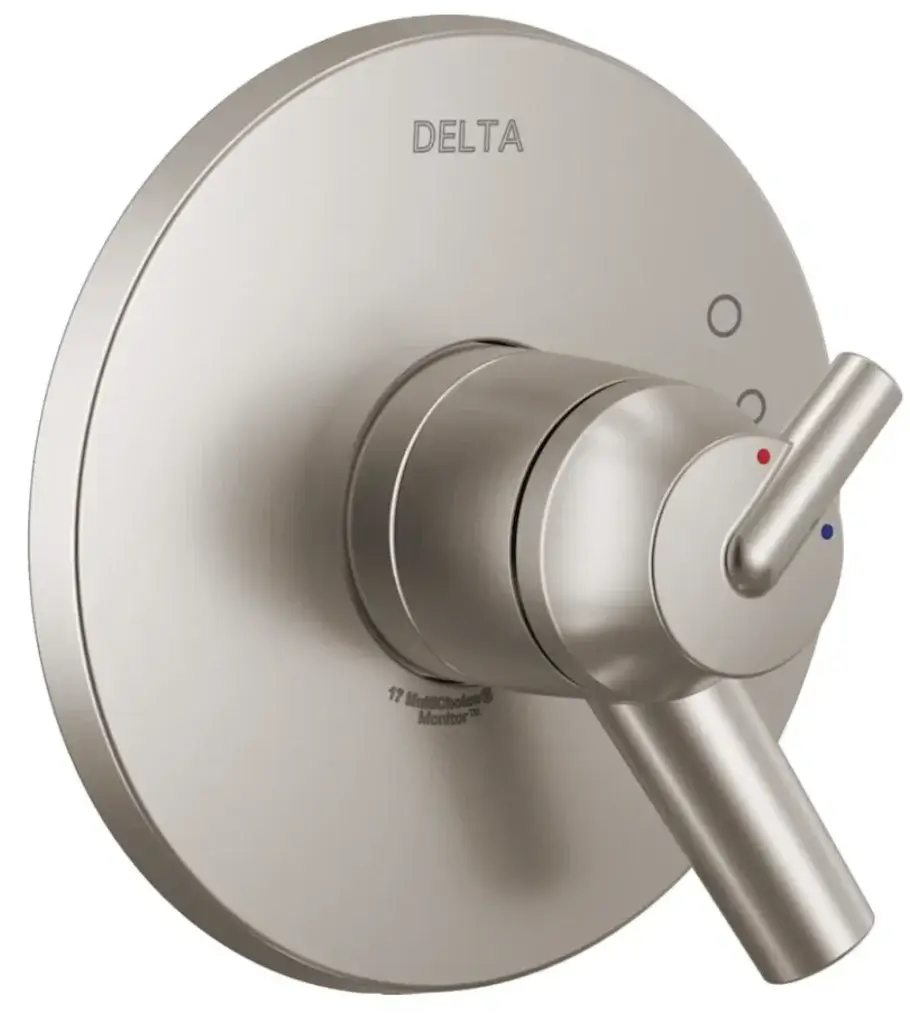

Delta 1700 series shower faucet

is a dual-function, pressure-balanced shower control. It uses a single valve body with a specialized cartridge that mixes hot and cold water while automatically compensating for pressure changes—so you don’t get sudden bursts of hot or cold water when someone flushes a toilet or runs a sink.

The Delta 1700 series has separate controls for temperature and volume. The outer handle typically controls water flow (on/off and pressure), while an inner dial adjusts temperature. This allows you to set your preferred temperature once and then simply use the volume control to start or stop the shower without readjusting the temperature each time.

Internally, the valve uses a pressure-balancing cartridge RP46463 with a spool-and-sleeve design. This mechanism continuously adjusts the hot-to-cold water ratio in response to pressure fluctuations in the plumbing system, keeping the outlet temperature stable within a safe range. It also includes a rotational limit stop, which can be set to prevent the handle from turning too far toward the hot side, reducing the risk of scalding.

In short, the Delta 1700 series is known for its durability, user-friendly dual controls, and reliable anti-scald protection—making it a popular choice for residential tub and shower installations.

The Delta 1700T Series Shower Valve

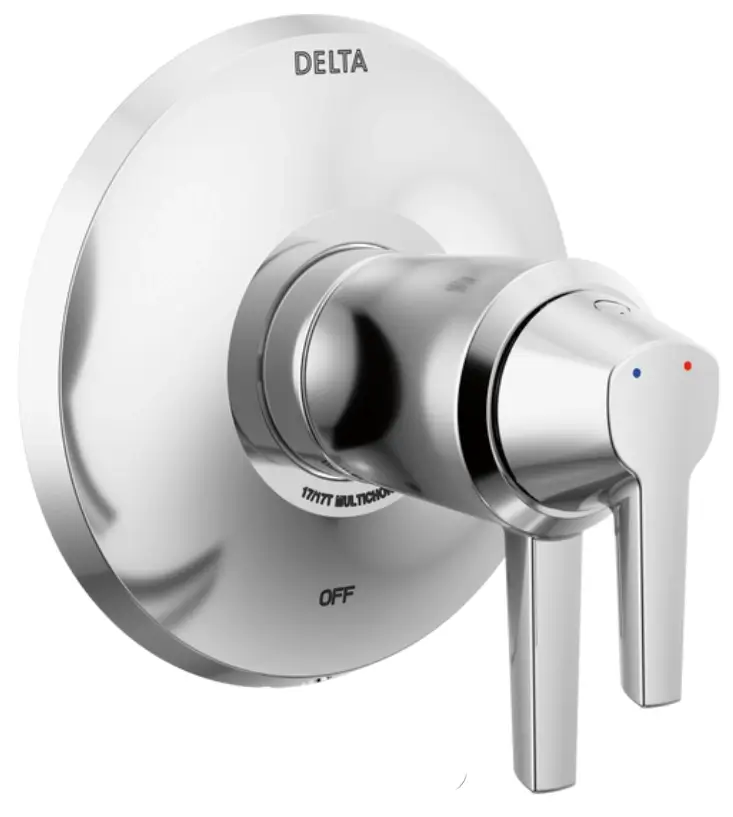

The Delta 1700T series (TempAssure 17T) shower valve is a premium thermostatic, dual-control shower system. Like the standard 1700

Delta 1700T series shower faucet

series, it uses two handles—one for water volume and one for temperature—, but the key difference is in how it controls temperature internally.

The standout feature of the 1700T series is its true thermostatic cartridge RP47201. Instead of simply balancing pressure, it uses a wax-and-spring temperature-sensing element that continuously measures the actual water temperature and automatically adjusts the hot and cold water to maintain it. This allows the valve to hold temperature within a very tight range (about ±3°F), even if there are changes in water supply temperature or pressure elsewhere in the house.

Functionally, the valve works like a thermostat in your home. You set your desired temperature once using the small dial, and the valve maintains that exact temperature every time you turn the shower on with the main volume handle—often described as a “set it and forget it” system. Unlike pressure-balanced valves, this faucet controls the actual temperature rather than just the hot/cold ratio, so it remains consistent even if you change your water heater setting or if the incoming water temperature varies seasonally.

In short, the Delta 1700T series provides precise temperature control, improved comfort, and superior anti-scald protection. It’s especially well-suited for high-end showers, multi-head systems, or homes where water pressure and temperature fluctuations are common.

The Three Delta Cartridge Types

1300/1400 Series RP19804 Cartridge— Single-Function Pressure Balance for Delta Faucets manufactured 1993 – April 2006

The RP19804 cartridge fits all 1300/1400 Monitor Series shower valves made from 1993 to April 2006 — roughly 13 years of manufacturing. The original cartridge had a white top with blue legs. The current version has a grey top with blue legs.

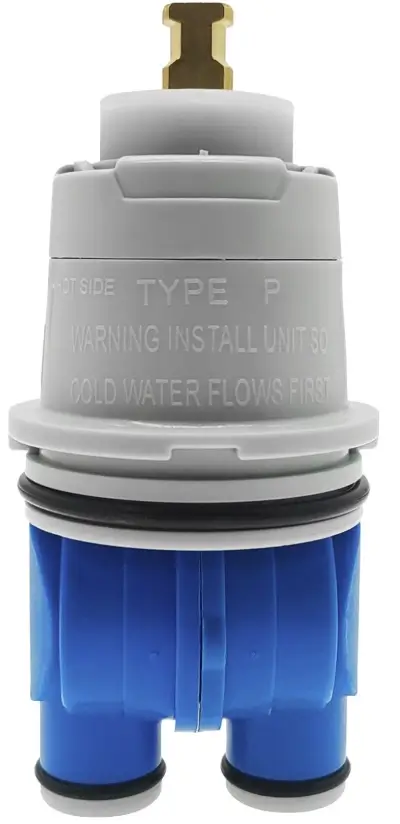

Delta RP19804 cartridge

As noted above, the 1300/1400 Series faucets share the same valve body and the same cartridge. Delta began shipping the MultiChoice Universal R10000 valve body in February or March of 2006.

Avoid this common DIYer mistake when buying a Delta cartridge

If your Delta 1300/1400 Series faucet has an RP19804 cartridge mounted inside, it isn’t a MultiChoice valve and can’t be converted to a two-handle trim kit. You must replace your existing RP19804 with another RP19804 cartridge. You can’t install the newer RP46074 cartridge in your pre-April 2006 Delta shower faucet. The post-2006 MultiChoice cartridge has differently shaped legs to fit the newer valve bodies.

The RP19804 cartridge was also used in the Delta Select product line, which was a builder-grade / lower-cost version of the Monitor valve sold through certain channels. If you have a Delta Select single-handle shower faucet installed in the same era, the RP19804 is the correct cartridge.

What an RP19804 Cartridge Will NOT Fit
An RP19804 will not fit any Delta MultiChoice faucet made after April 2006.

1300/1400 Series RP46074 Cartridge— Single-Function Pressure Balance Cartridge for MultiChoice valves (post April, 2006)

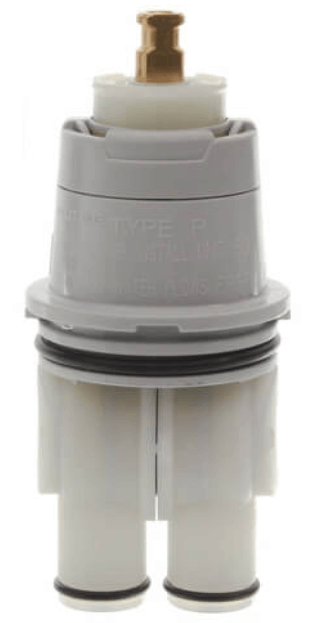

RP46074 single-function cartridge

The RP46074 cartridge controls both temperature and flow simultaneously — turn it on, then rotate the dial to your preferred heat. The 13 series valve trims have a traditional design and are part of the Classic collection, while the 14 series trims have a more contemporary design that corresponds to several Delta bathroom collection styles. Functionally, they are identical and use the same cartridge.

1600 Series RP1991 Single-Function Pressure Balance Cartridge 1980s through the early 2000s.

Rotating the shower handle turns the internal stem of the RP1991 cartridge. Inside that cartridge are port openings that align with the hot- and cold-water inlets. When the handle is in the off position, the internal ports are closed off. As you rotate the handle, the ports gradually open, allowing more water through. More rotation = higher flow and hotter mix

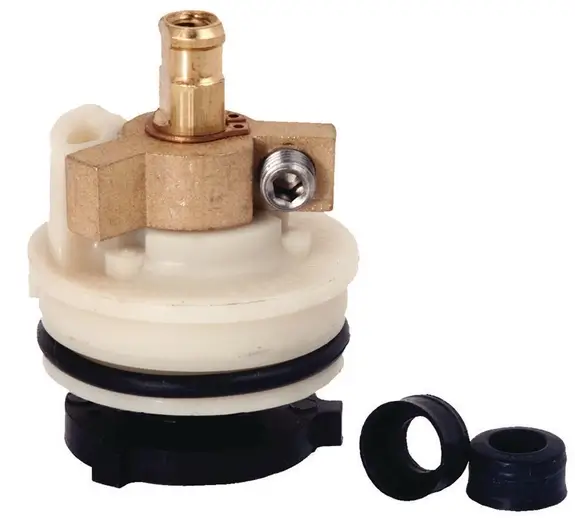

RP1991 cartridge for the Delta 1600 series faucet

At the base of the cartridge are rubber seats backed by small springs. These do two important jobs:

• Seal the valve when off so water doesn’t leak through
• Maintain tight contact with the cartridge as it rotates

The Pressure-Balancing Spool (Anti-Scald Protection)

Inside the cartridge is a pressure-balancing spool (a sliding piston). Its job is to react to pressure changes between the hot and cold sides. The spool senses the imbalance and restricts the hot-side flow, keeping the outlet temperature relatively stable.

17 Series — Dual-Function Pressure Balance (RP46463)
The 17 Series faucets added a volume control feature. So you can dial in the temperature and preferred flow rate independently. In other words, a 17 Series faucet requires two separate handles — one sets the preferred temperature, and the other turns the water on and off (and adjusts flow). This feature lets you preset your preferred shower temperature so you don’t have to readjust it every time.

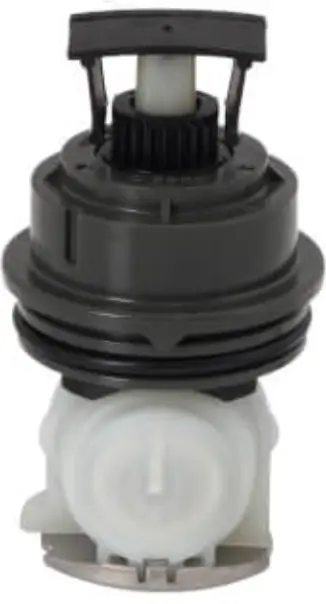

Delta RP46463 shower faucet cartridge

The 17 Series cartridge uses a spool-and-sleeve configuration. The spool and sleeve work together to automatically adjust the flow of incoming hot and cold water to maintain a consistent temperature in response to pressure variations — so when a toilet flushes and cold pressure momentarily drops, the cartridge restricts the hot side proportionally to maintain balance.

17T Series RP47201 Cartridge — Dual-Function Thermostatic
This is Delta’s most sophisticated option. The 17T cartridge represents a huge technological improvement over the 17 Series. Rather than sensing pressure differences between hot and cold water, it monitors the temperature differences and adjusts the hot/cold mix to maintain a more precise temperature.

Why this valve is so different

All pressure-balanced valves adjust temperature by maintaining a ratio between hot and cold water. When the pressure in one water supply drops, both drop.  So, flushing a toilet causes the cartridge to reduce the flow of hot and cold water.  The RP47201 thermostatic cartridge avoids this weakness because it responds to actual measured water temperature, not just pressure ratios.

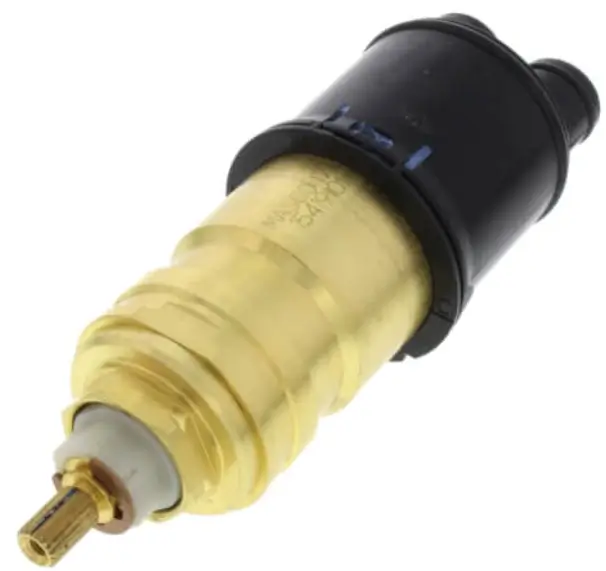

RP47201 cartridge

The thermostatic cartridge also has a significantly higher flow rate, delivering 8.53 GPM at 80 PSI, compared to 6.98 GPM at 80 PSI for the 17 Series pressure-balance cartridge.

The higher flow rate matters in custom shower systems with multiple spray heads, body sprays, and a separate hand shower, where the total demand can exceed what a pressure-balance cartridge can supply. The 17T cartridge RP47201 retails for several hundred dollars, making it a premium upgrade.

Quick Identification Cheat Sheet For Delta Cartridges

Does it have a stainless steel ball inside? → It’s a 600 Series Faucet using springs and seats

Does it have a single handle that only rotates? If the cartridge is Gray/White, replace it only with an RP19804 cartridge. If the cartridge is White/Grey and Blue, it’s an RP46074 cartridge

Does it have two controls (temp + volume)? Use an RP46463 cartridge

Does it have a heavy brass cartridge with precise temperature control? Use an RP47201 thermostatic cartridge.
