History of the InSinkErator Garbage Disposal Mount

How the InSinkErator Garbage Disposal Mount Works

Quick Summary
The InSinkErator garbage disposal mount is the most widely used garbage disposal mounting system in North America. Introduced decades ago, the design uses a three-bolt mounting ring with a twist-lock connection, allowing the disposer to hang securely from the sink flange. The system became the industry standard because it simplified installation, reduced vibration, and made disposer replacement easier.

It was an Insinkerator exclusive until the patent expired

The original InSinkErator garbage-disposal mounting design was patented. However, the earliest patents have long since expired, which is why many competing brands now use very similar mounting systems. Today, dozens of garbage disposal manufacturers use variations of the same three-bolt twist-lock mount.

The system has major advantages, including easy installation, wide compatibility, and strong support for heavy-duty disposers. But it also has disadvantages, including difficult snap-ring installation, seized mounting rings, and occasional leaks if the sink flange gasket deteriorates.

In most cases, I strongly recommend replacing the mount whenever you install a new garbage disposal, especially if the old mount is corroded, warped, or several years old.

What Is the InSinkErator Garbage Disposal Mount?

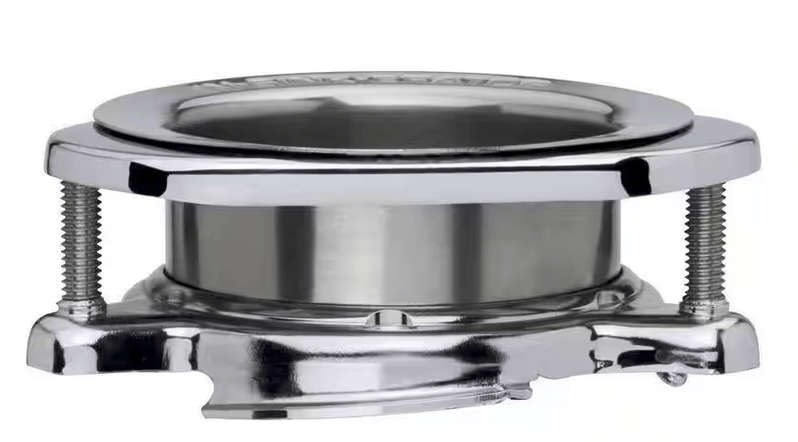

The InSinkErator garbage disposal mount is a metal mounting assembly that secures the garbage disposal to the kitchen sink drain opening.

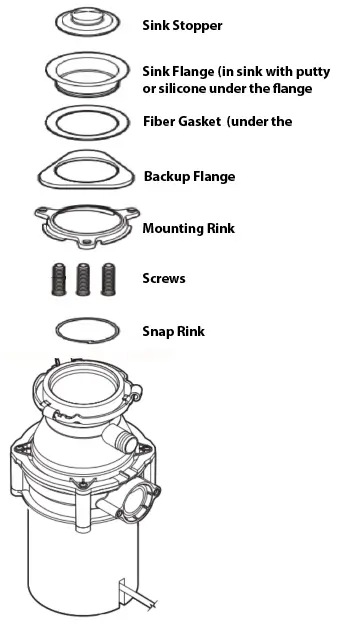

The system typically includes:

• Sink flange that mounts inside the sink and is sealed to the sink using plumbers’ putty or silicone caulk
• Rubber/fiber gasket that fits under the sink. The gasket helps seal the mount to the bottom of the sink. In addition, it provides vibration damping. A running garbage disposal generates significant vibration at the motor and grinding assembly. That vibration travels up through the disposal body and into the mounting ring. The fiber gasket introduces a slight compliance layer between the rigid metal flange stack and the sink surface, which reduces the amount of that vibration that couples into the sink itself. Less vibration transmission means less noise radiated through the sink basin into the kitchen — a modest but real contribution to overall sound reduction
• Backup flange
• Mounting ring
• Snap ring
• Three mounting bolts
• Twist-lock disposer collar

The disposer body locks into the mount by twisting it into place. Once engaged, the unit hangs securely beneath the sink.

Today, this mounting style is so common that many homeowners mistakenly believe every garbage disposal uses the same mount. That’s not entirely true, but the InSinkErator-style three-bolt mount became the unofficial industry standard.

When Was the InSinkErator Garbage Disposal Mount First Used?

InSinkErator introduced its early disposer mounting systems shortly after inventor John Hammes created the first residential garbage disposal in 1927. The familiar three-bolt mounting system evolved over time through the 1940s and 1950s as disposers became more common in American homes.

By the 1960s, the twist-lock three-bolt mounting assembly had largely become standardized across the InSinkErator lineup. The design was revolutionary because earlier disposer installations were far more cumbersome and difficult to service.

The three-bolt system simplified:

• Installation
• Removal
• Leak prevention
• Weight support
• Sink alignment

That’s why many brands now use nearly identical systems, including:

• Moen
• American Standard
• Waste King
• GE
• Frigidaire
• Glacier Bay

Some manufacturers modify the dimensions slightly, but most still rely on the same core twist-lock concept pioneered by InSinkErator.

Advantages of the InSinkErator Garbage Disposal Mount

In my experience, the InSinkErator garbage disposal mount has become dominant because it genuinely works well.
1. Easy Replacement — This is probably the system’s biggest advantage. Once the sink flange assembly is installed, replacing the disposer itself is usually straightforward. You simply:
• Support the disposer
• Twist the locking ring
• Disconnect wiring and plumbing
• Drop the unit out
That simplicity matters enormously when working under a sink.
2. Strong Weight Support — Modern disposers can weigh 15 to 25 pounds or more. The three-bolt mount distributes that weight evenly around the sink opening. Properly installed, the system provides excellent long-term support.
3. Excellent Availability — Replacement parts are everywhere.
You can find:
• Mounting rings
• Flanges
• Gaskets
• Snap rings
• Entire mount kits at nearly every hardware store or plumbing supplier.
4. Broad Compatibility — Many modern disposers intentionally mimic the InSinkErator mounting dimensions.
That means homeowners can often replace one brand with another without modifying the sink opening.
5. Good Vibration Isolation — The rubber cushion mount helps reduce vibration transfer into the sink. That makes the disposer quieter and reduces sink rattling.

Disadvantages of the InSinkErator Garbage Disposal Mount

Despite its popularity, the system definitely has some weaknesses.
1. Snap Ring Installation Can Be Frustrating — Ask almost any plumber. The snap ring is often the most aggravating part of the installation. If the installer doesn’t compress the assembly evenly, the ring can:
• Pop out repeatedly while you’re installing it. DIY homeowners often struggle with this step. The best way to avoid this is to place the new disposer in the sink with the full weight of the disposer pressing down onto the flange. That prevents the flange from moving, and you install the snap ring.
2. Mounting Rings Can Seize — Older mounts frequently corrode.
Over time:
• Moisture
• Food acids
• Galvanic corrosion
• Rust
can make the mounting ring extremely difficult to rotate. Sometimes I’ve had to use a hammer and screwdriver just to free an old disposer.
3. Leaks Can Develop Around the Sink Flange — The upper sink flange gasket eventually ages and hardens.
Common causes of leaks include:
• Improper plumber’s putty application
• Loose mounting bolts
• Gasket deterioration
• Sink movement
• Corrosion
This is especially common on older stainless steel sinks that flex under disposer weight.
4. Heavy Units Can Stress Thin Sinks — Large disposers hanging from thin stainless sinks can create:
• Sink flexing
• Metal fatigue
• Noise
• Drain alignment issues
That’s not necessarily the mount’s fault, but it can become a problem on lightweight sinks.

Should You Replace the Mount When Installing a New Garbage Disposal?

In most situations, yes. I strongly recommend replacing the entire InSinkErator garbage-disposal mounting assembly when installing a new unit.
Here’s why.
• New Gaskets Prevent Future Leaks
• Old gaskets harden over time.
• Even if the old mount looks acceptable, reusing old seals increases the risk of future leaks.
• Corrosion Is Often Hidden
• Many older mounts look fine from below but are heavily corroded behind the sink flange.
• Once corrosion starts, replacement is usually smarter than reuse.
• New Disposal Dimensions May Differ Slightly
• Even compatible mounts sometimes have:
• Slightly different locking tabs
• Different flange depths
• Different anti-vibration cushions
• Using the new mount ensures the disposer fits correctly.

Final Thoughts on the InSinkErator Garbage Disposal Mount

The InSinkErator garbage disposal mount became the industry standard because it solved several major plumbing problems at once. It simplified installation, improved reliability, reduced vibration, and made disposer replacement far easier than earlier systems.

Although the original patents have long expired, the basic design remains one of the most successful plumbing mounting systems ever created.

Even today, most competing garbage disposal manufacturers still rely heavily on variations of the same twist-lock three-bolt concept.
