Why you need a water heater expansion tank

Explore the Benefits of a Water Heater Expansion Tank

Quick Summary
In many homes, a water heater expansion tank is required by the plumbing code whenever the plumbing system is considered a “closed system.” A closed system has:

• A backflow preventer or check valve installed ahead of your water meter to prevent household water from backing up into the city water supply.
• A pressure reducing valve (PRV) — Used in areas where the water pressure entering the home is too high and must be reduced.

A water heater expansion tank is required in those situations because water expands as it heats. In a closed system, expanding hot water has nowhere to go — it cannot push back against the supply side — so without an expansion tank to absorb the excess volume, the resulting pressure buildup can stress and eventually damage pipes, faucets, and connected appliances throughout the home. A water heater expansion tank incorporates an inflatable bladder to absorb the increased pressure, preventing damage to the pipes, faucets, and appliances.

Without one, thermal expansion can cause:
• The temperature and pressure (T&P) valve to drip water onto the floor during the heating cycle.
• Repeated pressure fluctuations cause the water heater tank to flex, which, over time, cracks the interior lining and significantly shortens the unit’s service life.
• Leaking faucets due to excessive pressure
• Pipe stress due to repeated high-pressure expansion and contraction
• High pressure can overwhelm the solenoid inlet valves in washing machines, dishwashers, and ice makers, causing them to fail and potentially damaging the appliances themselves..

Even where code doesn’t require one, I often recommend installing an expansion tank because it reduces pressure spikes and protects the entire plumbing system.

What Is a Water Heater Expansion Tank?

A water heater expansion tank is a small pressure tank installed on the cold water supply line near the water heater. Inside the tank is

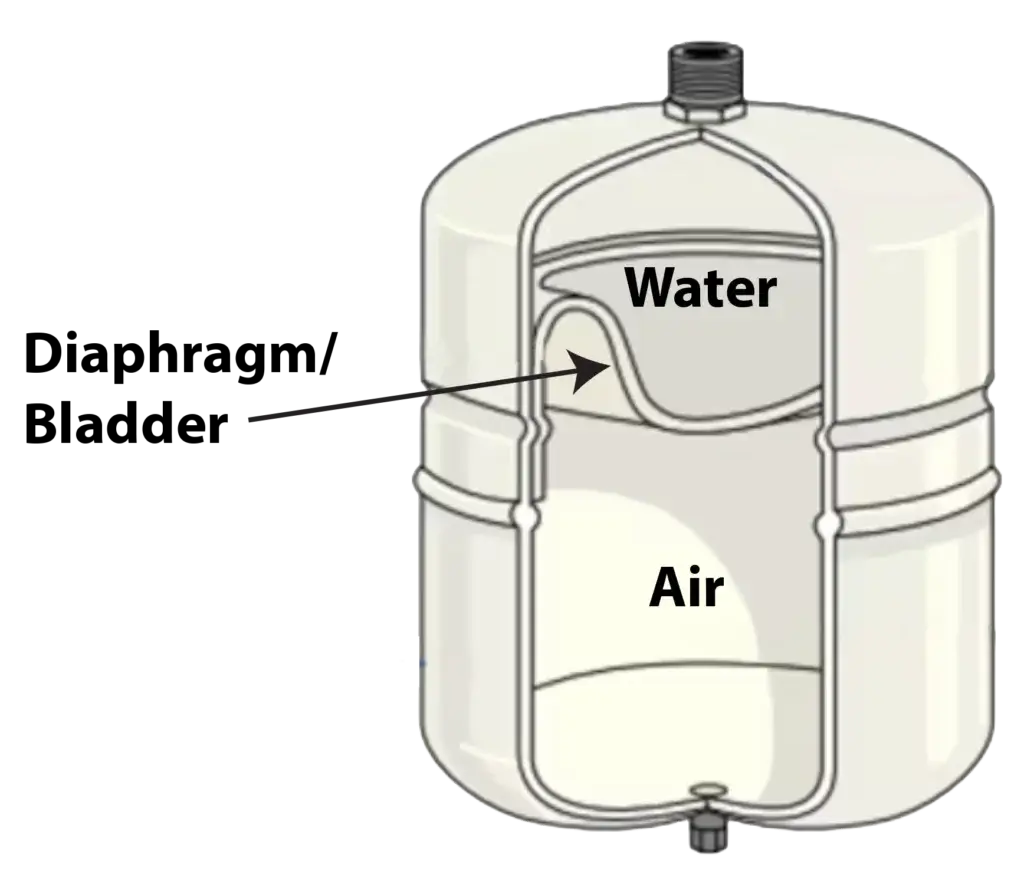

Cut away view of a water heater expansion tank

a rubber diaphragm or bladder that separates compressed air from incoming water.

When water heats inside a water heater, it expands. Since water is nearly incompressible, that expansion creates pressure. In an open plumbing system, some of that expanded water can flow backward into the municipal water main. But in a closed system, the expanded water has nowhere to go.

That’s where the expansion tank comes in.

The air chamber in the expansion tank compresses as the water expands, absorbing excess pressure before it can damage plumbing components.

Benefits of an Expansion Tank Even When Not Required

Even if code doesn’t require one, installing a water heater expansion tank provides several important benefits.

City water pressure can temporarily behave like a closed system — Even without a dedicated check valve, the municipal water system resists reverse flow once the home’s water pressure exceeds the incoming water pressure. So instead of the expansion leaving the house, the pressure inside your plumbing system rises anyway.

That’s why you may see:

• Intermittent spikes in house water pressure
• Dripping from the water heater T&P valve
• Faucet drips after heating cycles
• Toilet fill valve seepage
• Premature wear on washing machine hoses and fixtures

The expansion tank acts like a shock absorber. Instead of pressurizing every time the burner or elements heat the tank, the extra water volume compresses the air bladder in the expansion tank.

An expansion tank reduces pressure fluctuations — Even in systems that are technically “open,” water pressure often swings quite a bit. For example:

• City pressure at breakfast time might be 60-70PSI, but overnight pressure can climb even higher
• The heater raises the water temperature
• Thermal expansion adds even more pressure

Without a cushion, those pressure spikes repeatedly hammer the plumbing system. An expansion tank smooths out those swings. In my experience, homes with consistently high municipal pressure benefit from an expansion tank, even if no check valve is present.

It helps prevent nuisance T&P valve dripping — A common complaint is:
“My T&P valve only leaks occasionally.” That’s often caused by thermal expansion.
The temperature and pressure relief valve opens near 150 PSI or 210°F. However, you usually don’t need to maintain 150 PSI continuously for seepage to begin. Repeated pressure spikes can weaken the seat and cause intermittent dripping. An expansion tank absorbs those spikes before the T&P valve sees them.

It reduces stress on the water heater tank itself — The glass lining inside a water heater tank develops microscopic cracks over time from heating and cooling cycles. High pressure accelerates the stress on those weak points. By moderating pressure spikes, the expansion tank can reduce mechanical stress on:

• Tank welds
• Glass lining
• Internal fittings
• Anode rod openings

An expansion tank doesn’t guarantee a longer tank life, but it certainly doesn’t hurt, and it’s an inexpensive add-on.

The benefit is greatest in high-pressure homes

If your static house pressure is under 60 PSI: the benefit is smaller. However, if your water pressure is in the 70–80 PSI range, the benefit becomes more noticeable, and over 80 PSI you should really address pressure regardless. High pressure combined with thermal expansion is rough on plumbing components.

Another overlooked benefit is water hammer reduction

Because the tank contains compressed air separated by a bladder, it can absorb small pressure shock waves from:

Quick-closing valves in:
• Washing machines
• Dishwashers
• Ice makers

It’s not a dedicated water hammer arrestor, but it still helps dampen pressure spikes.

Where Is an Expansion Tank Installed?

A water heater expansion tank is installed on the cold water supply pipe feeding the water heater.

In most residential installations, it is mounted:

An expansion tank mounts to the water heater or is suspended above the heater

• above the water heater,
• on the cold inlet line,
• after any shutoff valve,
• and after any pressure-reducing valve or backflow device.

The tank can be mounted vertically or horizontally, although vertical mounting usually places less stress on the piping. I strongly recommend proper support for horizontally mounted tanks because a waterlogged tank becomes surprisingly heavy.

Correct Expansion Tank Pressure

The correct expansion tank pressure is one of the most misunderstood parts of installation. The air pressure inside the tank should match the home’s static water pressure before installation.

For example:
• If house pressure is 60 PSI,
• The expansion tank should be precharged to 60 PSI.
To determine the correct expansion tank pressure, I use:
1. A water pressure gauge connected to a hose bib or faucet.
2. Air pressure measured at the Schrader valve on the empty expansion tank.
The tank must be isolated from water pressure when checking the air charge.
If the air pressure is too low:
• IThe tank will be mostly filled with water at all times
• IThe bladder will already be partially or fully compressed before any hot water expansion occurs, leaving little or no air cushion to absorb the added volume.
• ISystem pressures spike higher than they should during heating cycles — defeating the purpose of the tank and placing the same stress on pipes, valves, and the water heater that would exist without a tank at all.
• The low air pressure stretches the bladder, reducing expansion capacity and the life of the bladder.
If the pressure is too high:
• The bladder or diaphragm will be pushed too far toward the water side before any expansion occurs
• The then accepts little to no additional water volume when the water heater fires up, leaving the system with effectively no buffer against rising pressure, making it functionally useless.

Final Thoughts on Water Heater Expansion Tanks

A properly installed water heater expansion tank is one of the best ways to protect a residential plumbing system from thermal expansion damage.

If your home has:
• a pressure-reducing valve,
• check valve,
• a backflow preventer,
you likely need one by code.
Even when not required, the benefits are substantial:

• lower pressure spikes,
• reduced plumbing wear,
• fewer leaks,
• and longer water heater life.

Just remember that proper installation matters. Correct location, proper support, accurate sizing, and setting the correct expansion tank pressure are what make the system work effectively.

See this article on how to set water heater expansion tank pressure.
