Subaru AC Fan Only Works on Low? Here’s the Real Fix

How to Fix AC on a Subaru When the Fan Speed Stops Working

Quick Summary
Subaru vehicles 2014 and later are known for AC failure caused by a melted blower motor pigtail or a failed HVAC control head. However, you can fix the AC on a Subaru without replacing the entire dash harness. Replace the HVAC control module, install a new repair pigtail correctly, and you’ll restore full blower operation. Done right, this repair is solid, reliable, and far less expensive than a full harness replacement.

How to Fix AC on a Subaru (And Why the Fan Speed Fails)

The first step in diagnosing the problem is to determine whether the blower motor works on all speeds. If the blower motor works on speeds 1, 2, and 3—but not on speed 4- that’s a classic sign of HVAC control unit failure. And in many cases, it’s not just the module—it’s the connector that overheats and melts.

On manual HVAC systems, blower speed 4 is typically direct battery voltage; there’s no blower motor resistor in the circuit at this high speed. That means maximum current flows through the switch contacts and connector terminals. Over time, resistance builds at the blower motor electrical terminal. Resistance creates heat. Heat creates more resistance. Eventually, the connector melts, the terminal burns, and you lose high-speed blower operation.

Once a connector has been cooked, it’s compromised. So, if you want to fix the AC on a Subaru properly, you have to address both parts:

• The HVAC control module
• The melted electrical pigtail
Replace only one, and you’ll likely be back in the dash again.

Step-by-Step: How I Fix AC on a Subaru With This Failure

Removing the HVAC Control Assembly

1) Disconnect the battery

2) Remove the center trim panel and locate the two HVAC control cables (temperature and mode), the main electrical connector, a smaller secondary connector, and the hazard switch connector.

3) Carefully release the control cables from their pegs and clips. They snap in and out. Be patient! It’s easy to break the cable retainers from rushed repairs.

4) Remove the HVAC module.

5) Confirm the Burnt Connector: Check the connector at the control head and look for a burned center pin and signs of melted plastic. If you see melted plastic, you’ll have to replace the HVAC head unit.

Installing the New HVAC Control Unit

1) Swap the new unit in, secure it, and you’re ready to address the wiring.

Replace the burned pigtail. Unfortunately, Subaru doesn’t sell this connector separately. They want you to replace the entire dash harness, which is expensive and unnecessary.

Instead, buy an aftermarket repair pigtail. One common option is the AC Delco PT2187 repair connector. Or buy a pigtail from findpigtails.com.

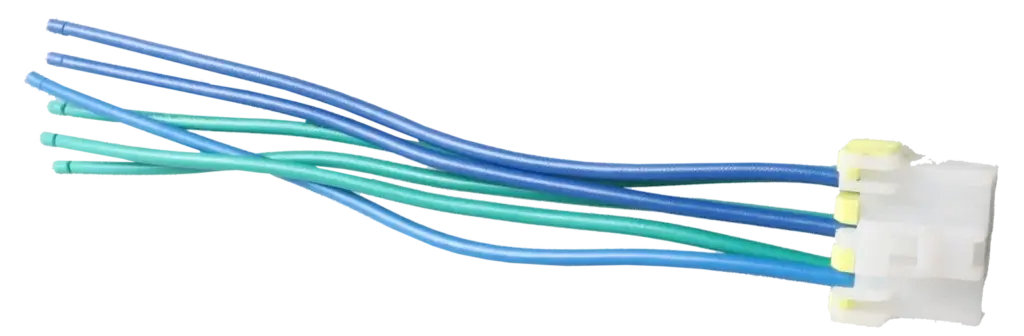

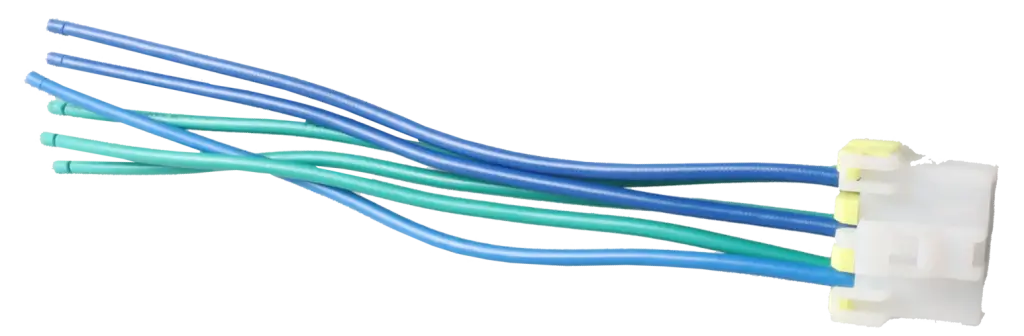

Subaru blower motor pigtail

Here’s the challenge: The wires on the new connector don’t match factory colors. You must carefully match each wire by terminal position—not by color. Use a multimeter set to ohms and test each wire and pin to identify which wire goes to which pin.

How to splice in the new blower motor connector

• Cut the old connector back to clean copper

Duraseal heat-sprinkleable splice seal

• Stagger the splices
• Use sealed heat-shrink connectors
• Apply proper heat until the adhesive flows from both ends
• The sealed connectors are critical. This blower circuit carries a significant current. You don’t want a weak crimp or dry solder joint here.

Reassembly and Testing

Test all the fan speeds. If speed 4 works consistently without cutting out, the repair is solid.

Then verify that:

• The temperature cable moves from full hot to cold
• The mode door switches correctly
• There’s no binding in control cables

If all that works, reinstall the glove box and trim panel.
